Timer

Digital Timer

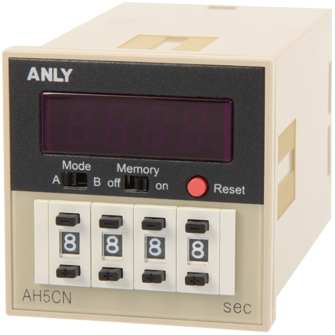

AH5CN DIGITAL TIMER

  • 7-segment-display for clear display and effective monitoring
  • Protection against power surge and high frequency interference
  • Base-10 (99.99S ~ 99990H) and Base-60 (99M59S or 99H59M) time ranges available
  • Memory switch allows users to enable or disable memory function
  • Manual reset button on faceplate

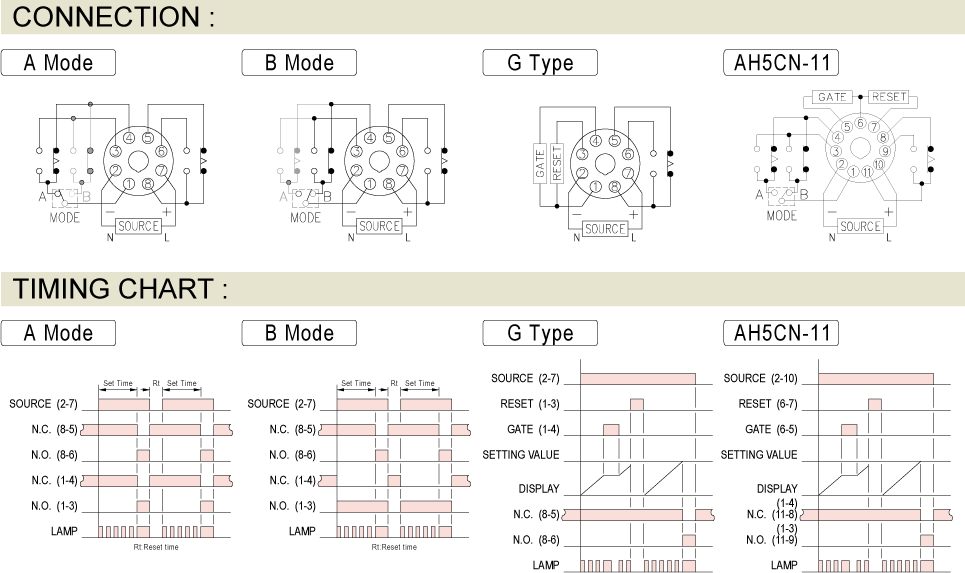

  • 2 modes selectable via slide switch:  Mode A (2C) for DPDT time-limiting output contacts and Mode B (1A1C) for SPDT instantaneous and time-limiting output contacts
  • Can be used as a "Hour Meter"
  • External pause contact available on G type
  • UL, C-UL recognized and CE certified
